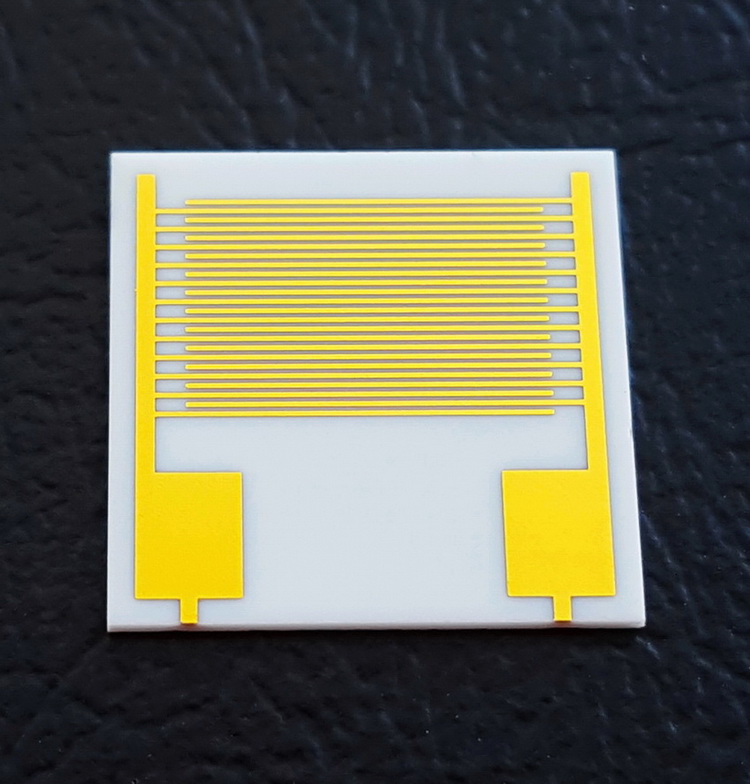

100μm interdigital gold electrode film circuit IDE capacitor array gas humidity biosensor chip
| 【Numbering】BK2021012502 | 【CAS】cas | ||
| 【Item No.】BK2021012502 | 【specification】 | ||
|
|||
1. Substrate: alumina ceramic, thickness 0.38mm; external dimension: 10mm*10mm.
2. Line width: 100 μm, line spacing: 100 μm, finger length: 7.7mm. Interdigital pairs: 12 pairs (24 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 5um, 4um, 1um.
Message
2. Line width: 100 μm, line spacing: 100 μm, finger length: 7.7mm. Interdigital pairs: 12 pairs (24 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 5um, 4um, 1um.
4. Applicable temperature: -150℃~350℃.
5. Large pads make it easier to operate and observe in experiments.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and spacing, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
