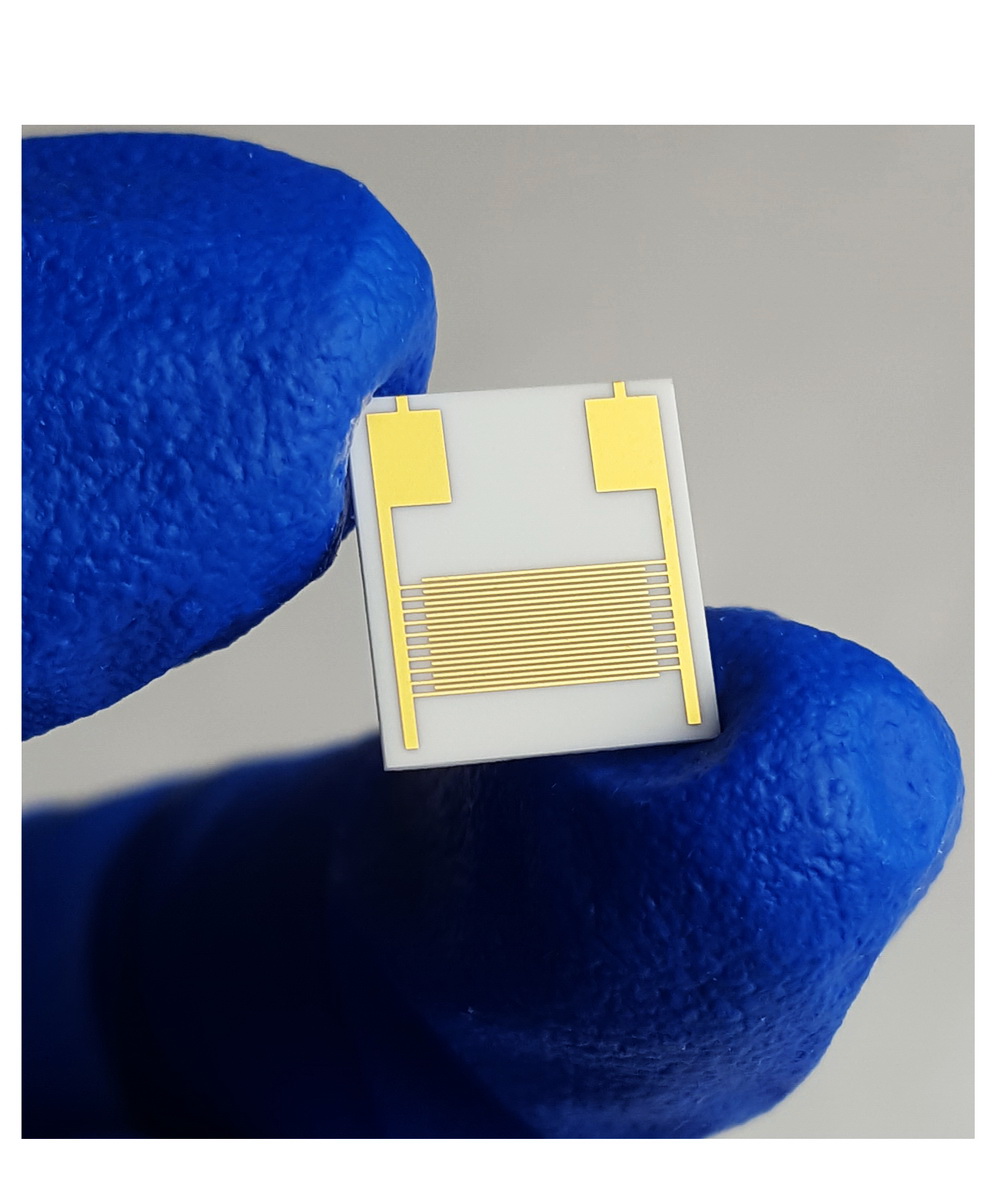

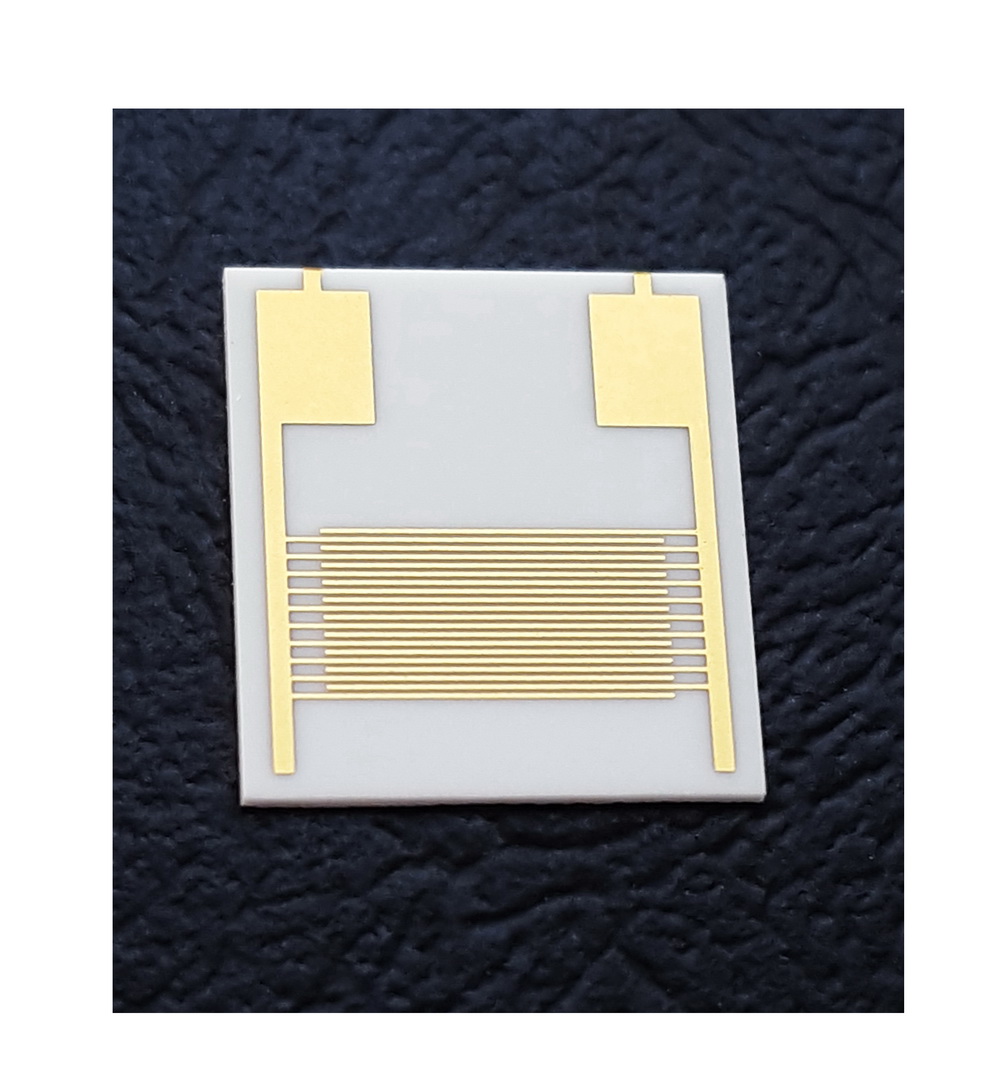

80μm interdigital electrode IDE capacitor array gas biological humidity sensor chip scientific research experiment 20 fingers
| 【Numbering】BK2021012504 | 【CAS】cas | ||
| 【Item No.】BK2021012504 | 【specification】 | ||
|
|||
1. Substrate: alumina ceramic, thickness 0.38mm; external dimension: 9mm*10mm.
2. Line width: 80um, line spacing: 80um, finger length 6.7mm; interdigital pairs: 10 pairs (20 fingers). 3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 2um, 1um, 1um. 4. Electrode operating temperature range -150℃～350℃.
5. The product can be used as the core component of electrochemical, medical, and humidity sensors with reliable performance.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, single crystal silicon), and different processes (thick film processes,
2. Line width: 80um, line spacing: 80um, finger length 6.7mm; interdigital pairs: 10 pairs (20 fingers). 3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 2um, 1um, 1um. 4. Electrode operating temperature range -150℃～350℃.
5. The product can be used as the core component of electrochemical, medical, and humidity sensors with reliable performance.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, single crystal silicon), and different processes (thick film processes,
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
