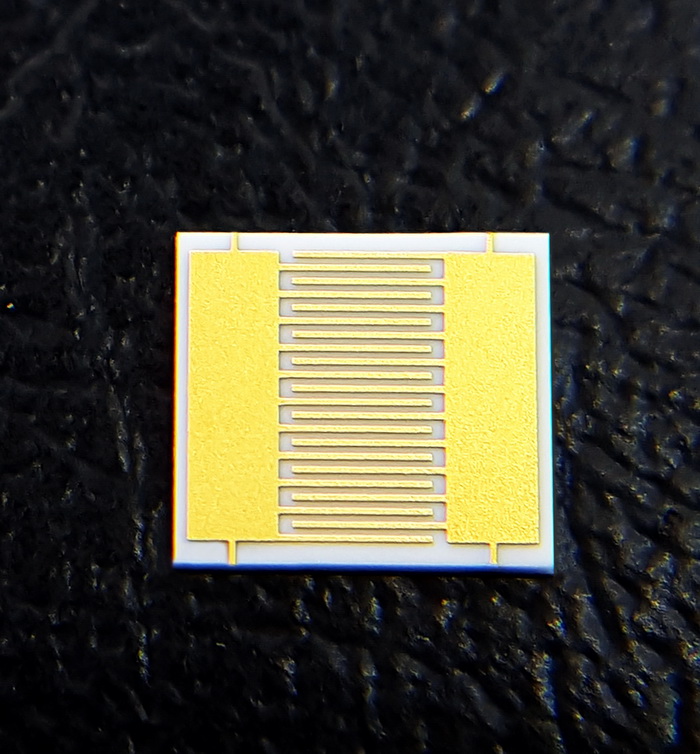

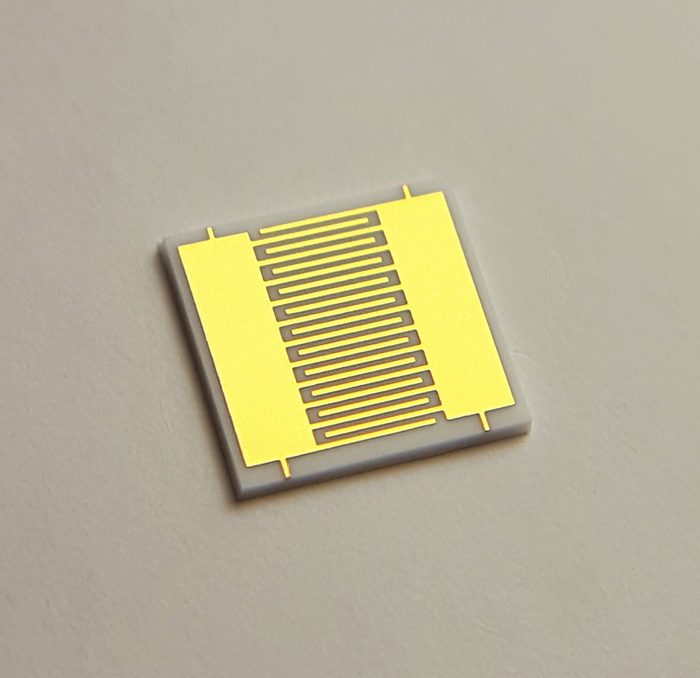

100μm interdigital electrode IDE biogas humidity sensor DPC film capacitor array laboratory scientific research
| 【Numbering】BK2021012506 | 【CAS】cas | ||
| 【Item No.】BK2021012506 | 【specification】 | ||
|
|||

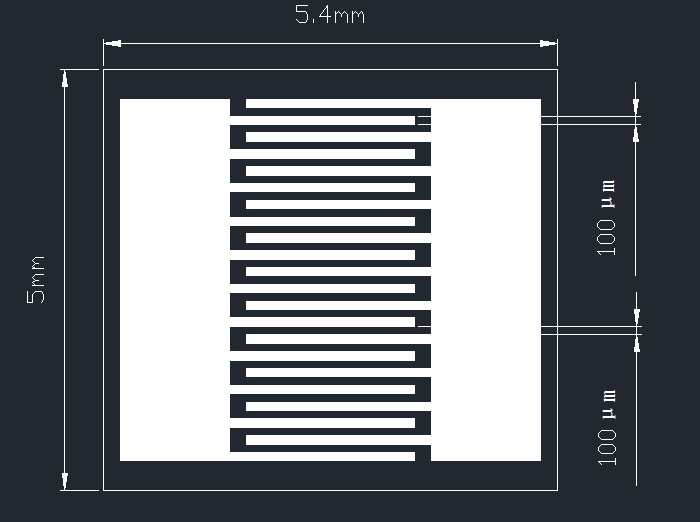

1. Substrate: alumina ceramic; dimensions: 5.4mm*5mm*0.38mm.
2. Line width: 100pm, line distance: 100um, finger length 2.2mm; number of interdigital pairs: 11 pairs (22 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness is 0.1um, 10um, 4um, 1um respectively.
4. Electrode operating temperature range: -150℃~350℃.
5. The electrode has a large pad, so it is easy to wire and solder.
6. The product can be used as the core component of chemical, biological and optical sensors with reliable performance.
7. Large quantity and preferential price.
Message
2. Line width: 100pm, line distance: 100um, finger length 2.2mm; number of interdigital pairs: 11 pairs (22 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness is 0.1um, 10um, 4um, 1um respectively.
4. Electrode operating temperature range: -150℃~350℃.
5. The electrode has a large pad, so it is easy to wire and solder.
6. The product can be used as the core component of chemical, biological and optical sensors with reliable performance.
7. Large quantity and preferential price.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PV/PET flexible materials, single crystal silicon), and different processes (thick film process, DPC process, MEMS process).
