90μm flexible interdigital electrode PET capacitance array scientific research experiment sensor chip IDE biosensor
| 【Numbering】BK2021012706 | 【CAS】cas | ||
| 【Item No.】BK2021012706 | 【specification】 | ||
|
|||

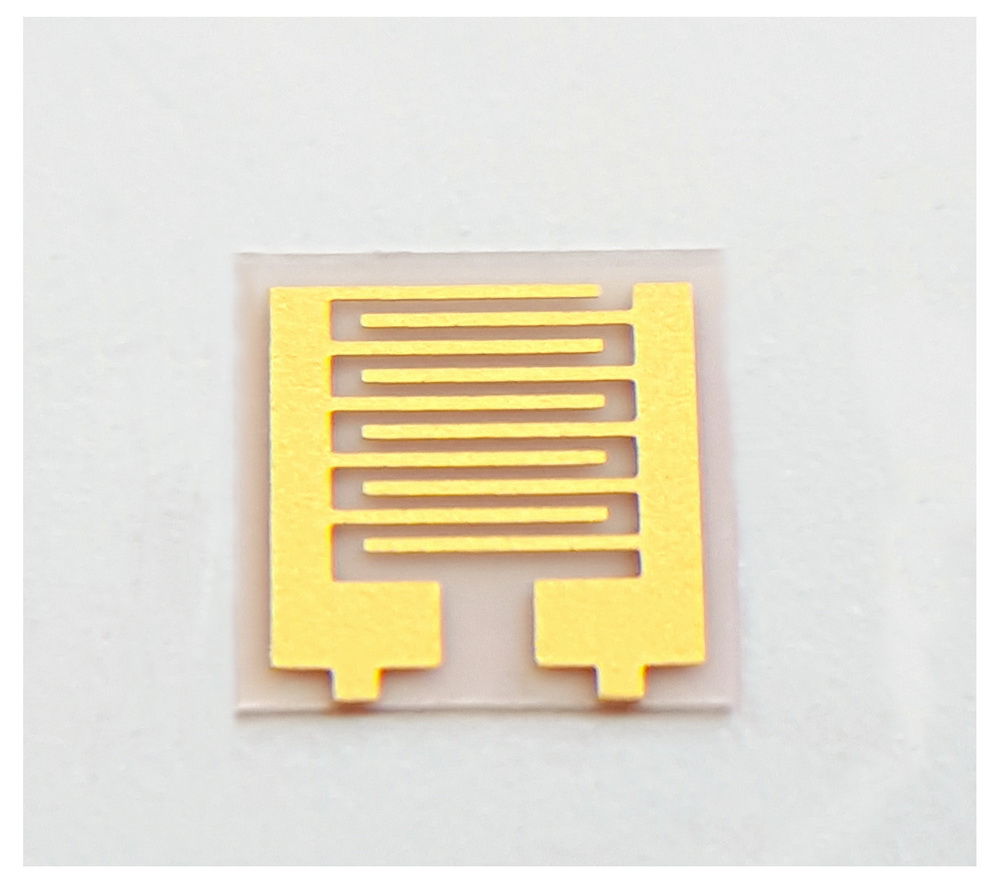

Flexible PET interdigital electrode IDE medical biogas humidity sensor chip capacitor array

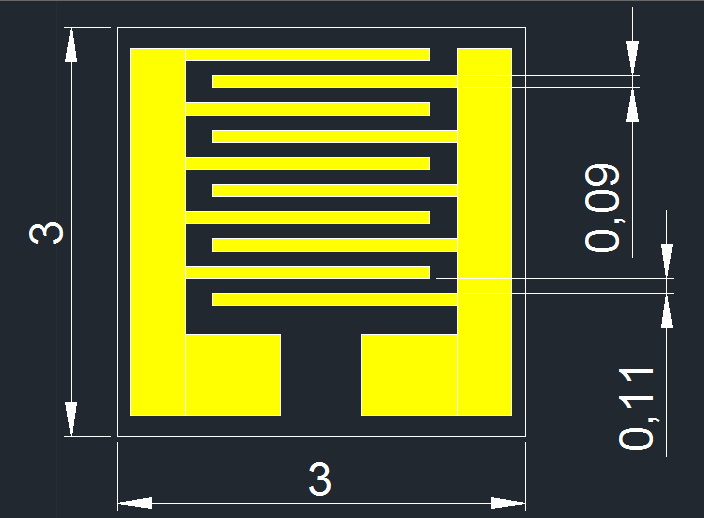

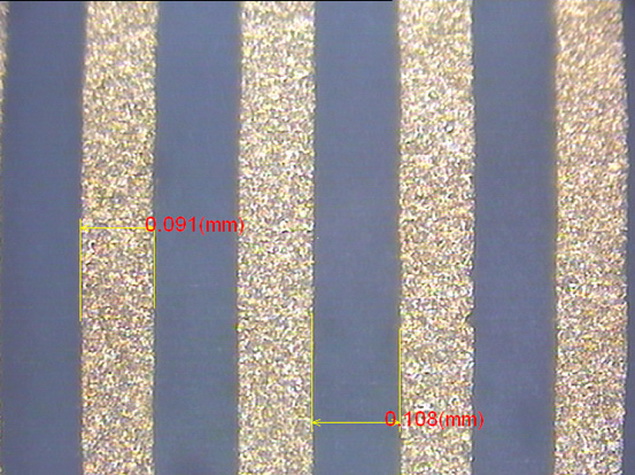

1. Substrate: Polyethylene terephthalate (PET), thickness 75um, external dimension 3mm*3mm. 2. Line width 90um, line spacing 110um, finger length 1.8mm; number of interdigital pairs: 5 pairs (10 fingers). 3. Metal layer structure Cu/Ni/Au, the thickness is 12um, 1um, 1um respectively.
4. Electrode operating temperature range: -50℃~120℃.

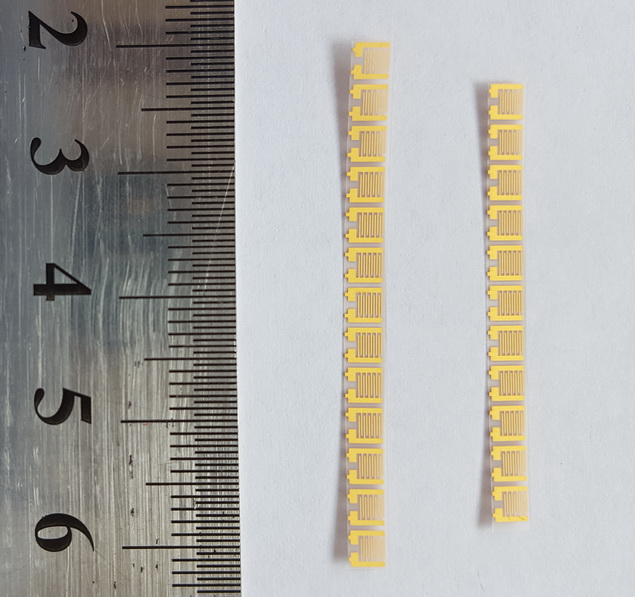

5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
Message
1. Substrate: Polyethylene terephthalate (PET), thickness 75um, external dimension 3mm*3mm. 2. Line width 90um, line spacing 110um, finger length 1.8mm; number of interdigital pairs: 5 pairs (10 fingers). 3. Metal layer structure Cu/Ni/Au, the thickness is 12um, 1um, 1um respectively.
4. Electrode operating temperature range: -50℃~120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, PCB process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
Message
|
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance.The website pictures are from the Internet. The pictures are for reference only. Please take the real object as the standard. In case of infringement, please contact us to delete them immediately. |
