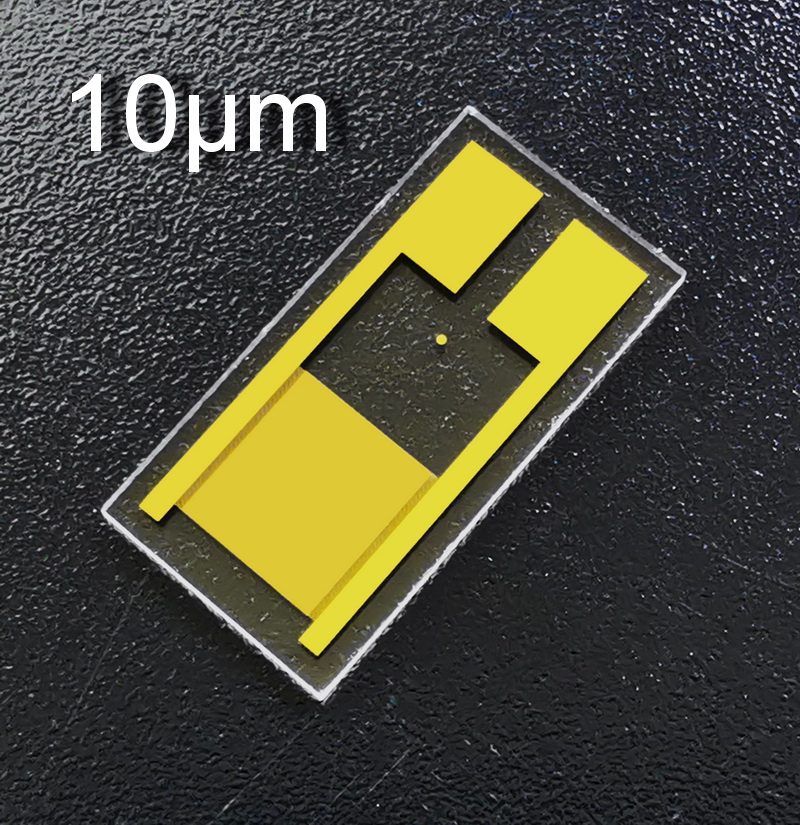

10μm transparent interdigital electrode quartz glass capacitor array MEMS gas biosensor photoelectric detection
| 【Numbering】BK2021012708 | 【CAS】cas | ||
| 【Item No.】BK2021012708 | 【specification】 | ||
|
|||
10 micron transparent interdigital electrode quartz glass gas humidity biological MEMS

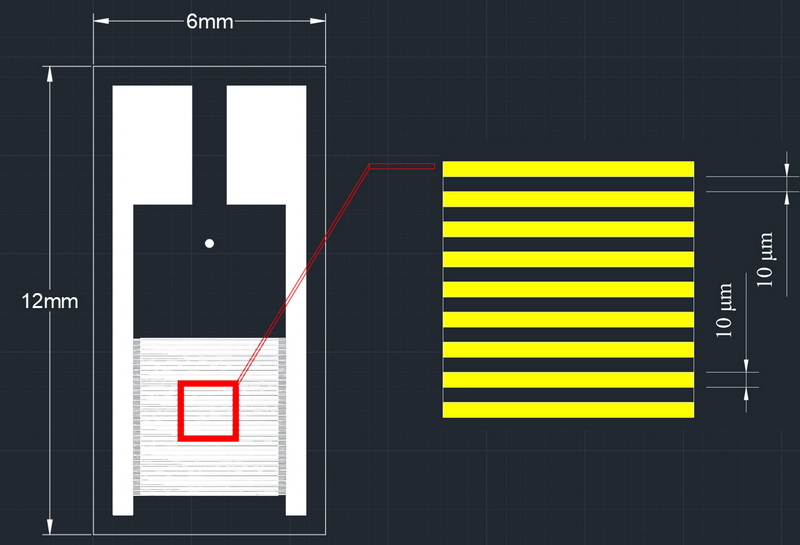

1. Dimensions: 6mm*12mm*0.5mm.
2. Line width: 10um, line spacing: 10pm, finger length: 3.7mm interdigital logarithm: 100 (200 finger).

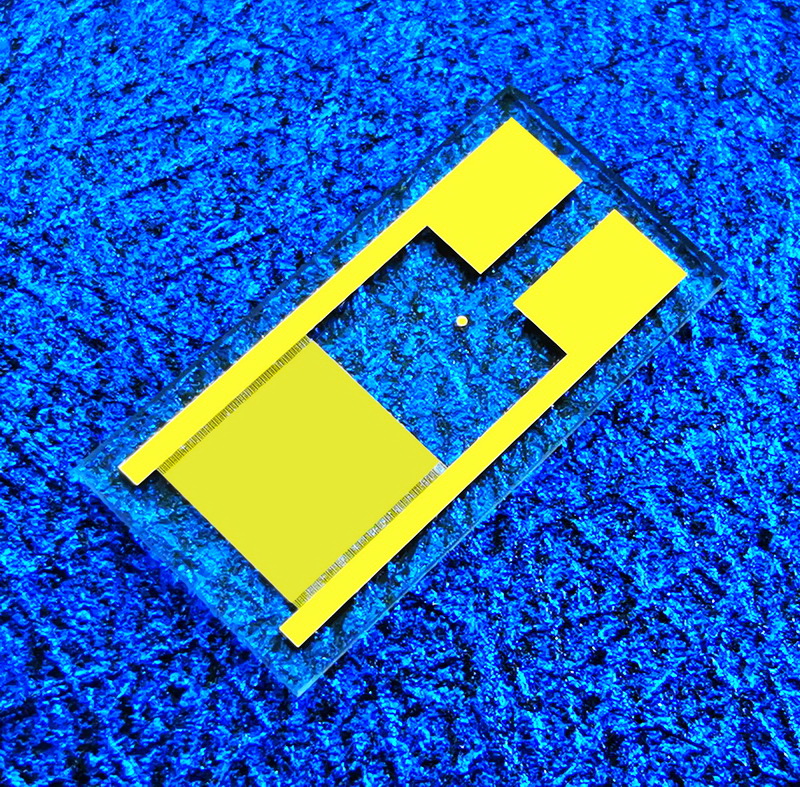

3. Electrode substrate is quartz glass, polished on both sides, fully transparent; 4. Metal layer structure: Ti/Au, thickness is 30nm, 100nm respectively; 5. Electrode operating temperature range: -150℃~500℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 7. Large quantity and preferential price.
Message
1. Dimensions: 6mm*12mm*0.5mm.
2. Line width: 10um, line spacing: 10pm, finger length: 3.7mm interdigital logarithm: 100 (200 finger).
3. Electrode substrate is quartz glass, polished on both sides, fully transparent; 4. Metal layer structure: Ti/Au, thickness is 30nm, 100nm respectively; 5. Electrode operating temperature range: -150℃~500℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 7. Large quantity and preferential price.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, PCB process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
